MULLERCase Study: Dynamic outboard TOW cable for submarine
Submarine Case Histories:
Lapp Muller develop and produce different types of dynamic cables equipped with their mechanical termination and opto/electrical connectors.
Each cable/system is designed according to customer’s specification.

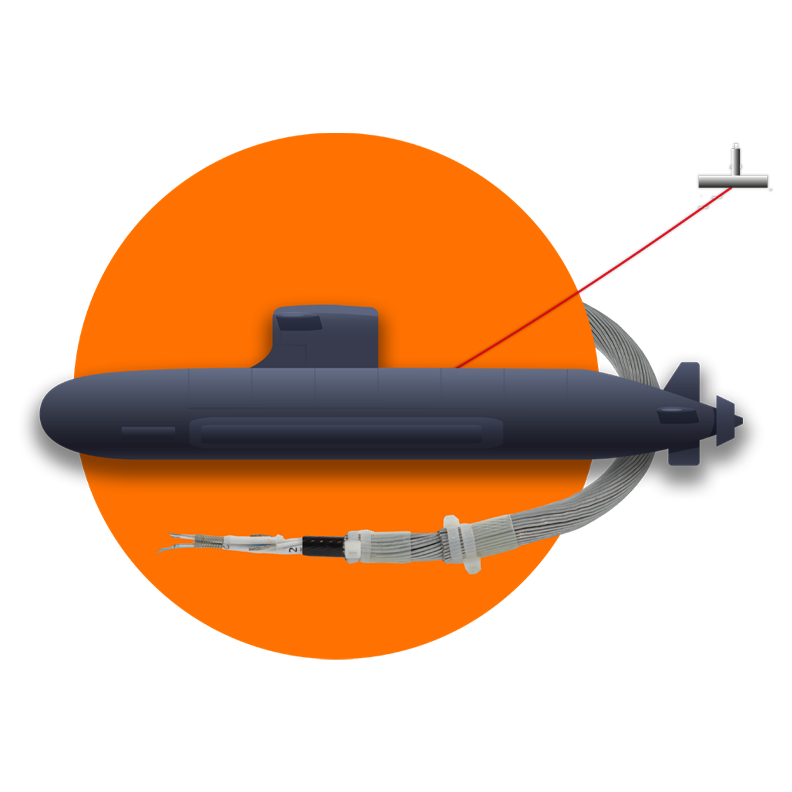

ARMORED TOW CABLE FOR BUOY
Components
- Conductors/coaxial/optical fiber
- TPE or XLPE insulation TPU sheath
Technical requirements
- Breaking strength - low elongation
- Complete harness
- Long term immersion reliability

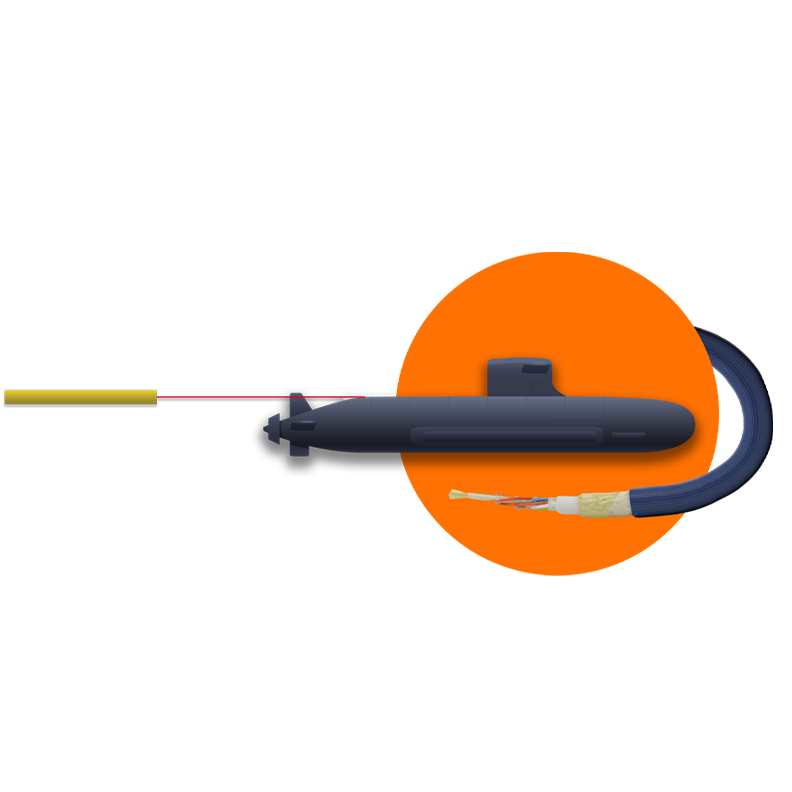

Low density tow cable
Components
- Conductors / coaxial / optical fiber
- XLPE insulation / Synthetic fiber braid / Low density TPU sheath
Technical requirements
- Density of the cable vs depth
- Complete harness
- Long term immersion reliability

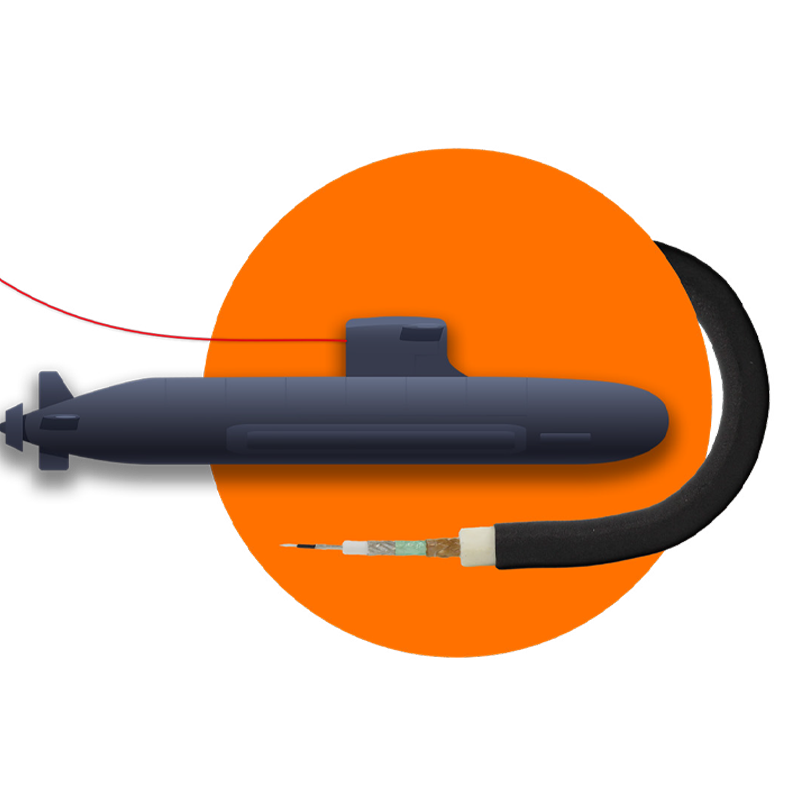

Coaxial One Wire Antenna
Components
- Conductors/coaxial/optical fiber
- TPE insulation Low density TPU sheath
Technical requirements
- Density of the cable vs depth
- Complete harness
- Long term immersion reliability
Low density tow cable
Components
- Conductors/coaxial/optical fiber XLPE insulation Synthetic fiber braid Low density TPU sheath
Technical requirements
- Density of the cable vs depth
- Complete harness
- Long term immersion reliability
